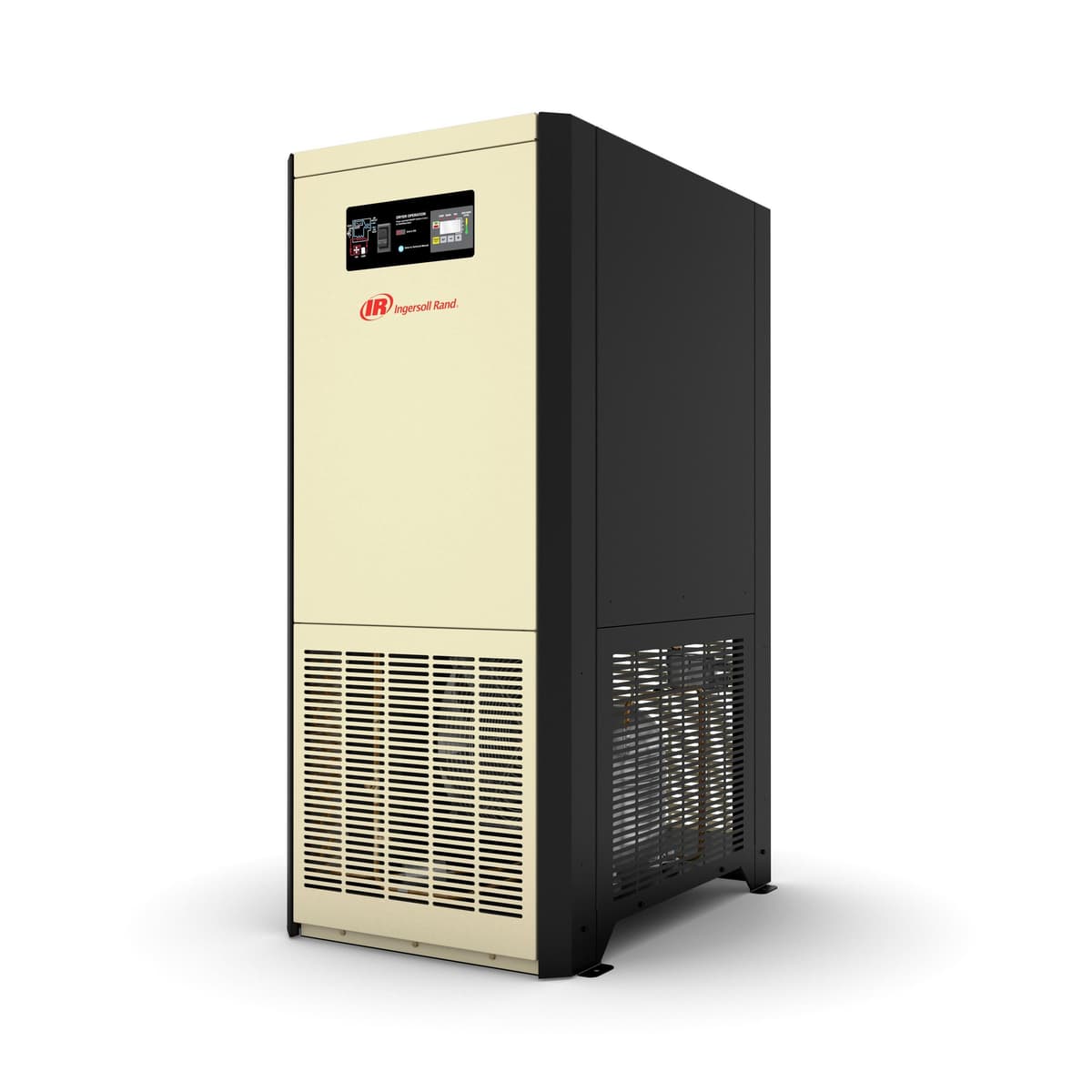

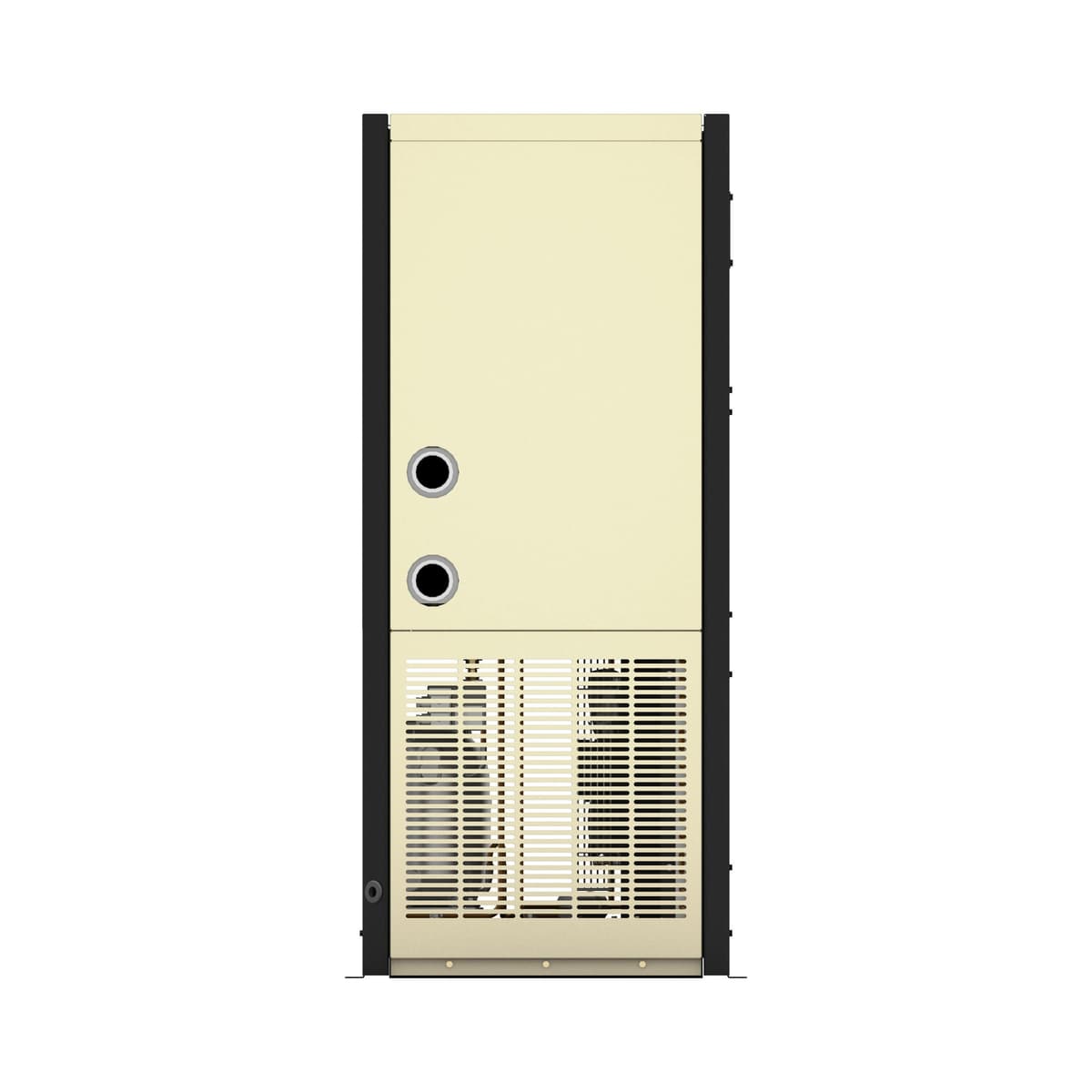

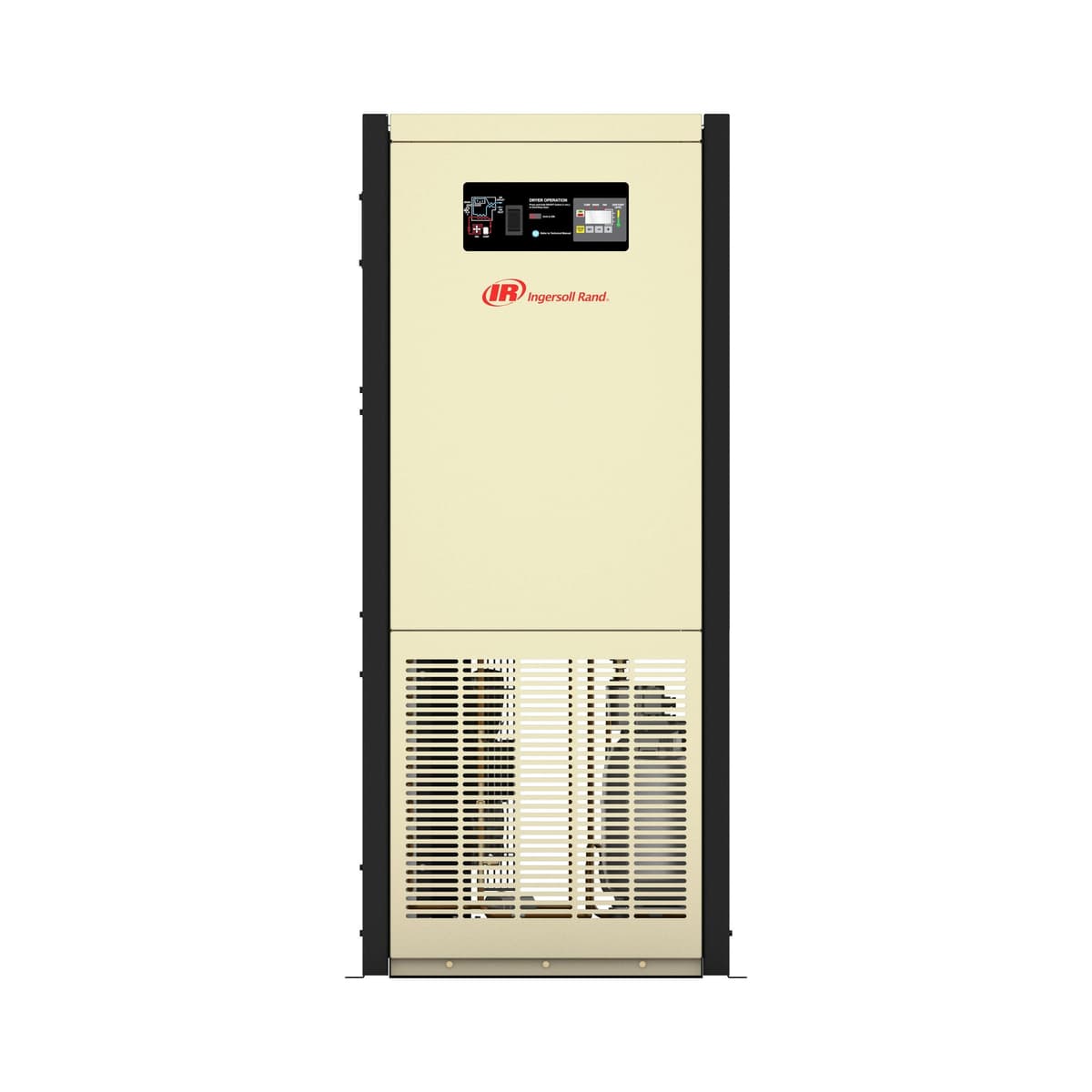

Refrigerated Non-Cycling Air Dryer: DA420INA40NG 250 SCFM ENLD, 460/3/60
SKU: 47832118001
Rated for a Pressure Dewpoint of 38°F
SKU: 47832118001
Elevate your compressed air treatment with the next generation of non-cycling dryers. The Ingersoll Rand D-IN Series is designed for industrial applications and built to utilize R513A refrigerant, supporting your sustainability goals while delivering reliable, energy-efficient performance. The D-IN Series is the perfect addition to new and existing systems, offering versatility and ease of maintenance for a wide range of applications.
Product Specifications
Rated Flow (cfm): 250
Max Pressure (psi): 300
Maximum Inlet Temperature (F): 120
Voltage: 460
Phase: 3
Dryer Dimensions (inches) (LxWxH): 20.9x31.8x49.3
Dryer Weight (lbs): 440
Rated Flow (cfm): 250
Max Pressure (psi): 300
Maximum Inlet Temperature (F): 120
Voltage: 460
Phase: 3
Dryer Dimensions (inches) (LxWxH): 20.9x31.8x49.3
Dryer Weight (lbs): 440
Expected to ship within 5-7 business days.
In Stock
$9,907.00
Prices for items exclude shipping costs and taxes. Depending on your delivery address, taxes may vary at checkout.- Environmental Compliance: Incorporates R513A refrigerant with low Global Warming Potential (GWP) meeting sustainability and regulatory requirements.
- Energy Efficiency: Low pressure drop enhances energy efficiency, reducing operational costs.
- Reliable Performance: High-quality components, including a constant pressure valve and brazed aluminum heat exchanger (75-250cfm), ensure durability and dependable operation.
- Comprehensive Testing: Extensive prototype and field testing under various load conditions guarantees reliable performance.
- Ease of Maintenance: Simple, serviceable design reduces downtime and simplifies upkeep.
- Safety Standards Compliance: Certified to UL 60335-1, UL 60335-2-40, CSA 22.2 #60335-1, and CSA 22.2 #60335-2-40 for maximum safety and reliability.
- Process Protection: Includes general purpose and high-efficiency pre- and post-filters to safeguard the dryer and downstream equipment. Applies to 75-250 SCFM models.
