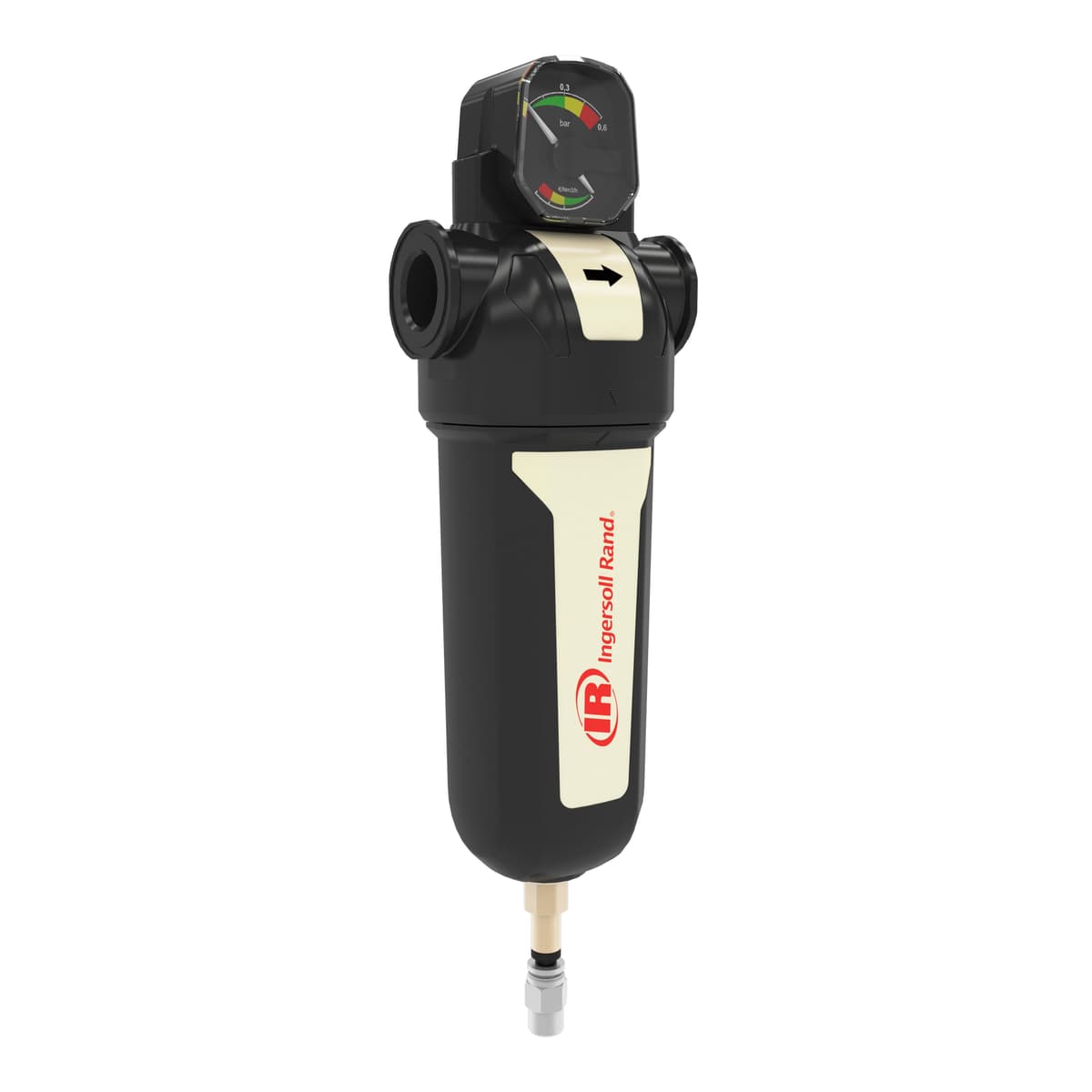

High Efficiency In-Line Filter: FA40IH

SKU: 24233306

F-Series high efficiency particulate and coalescing filter for Ingersoll Rand compressors (17 SCFM), designed for contaminant removal and consistent air quality
High Efficiency In-Line Filter: FA40IH thumbnail 1

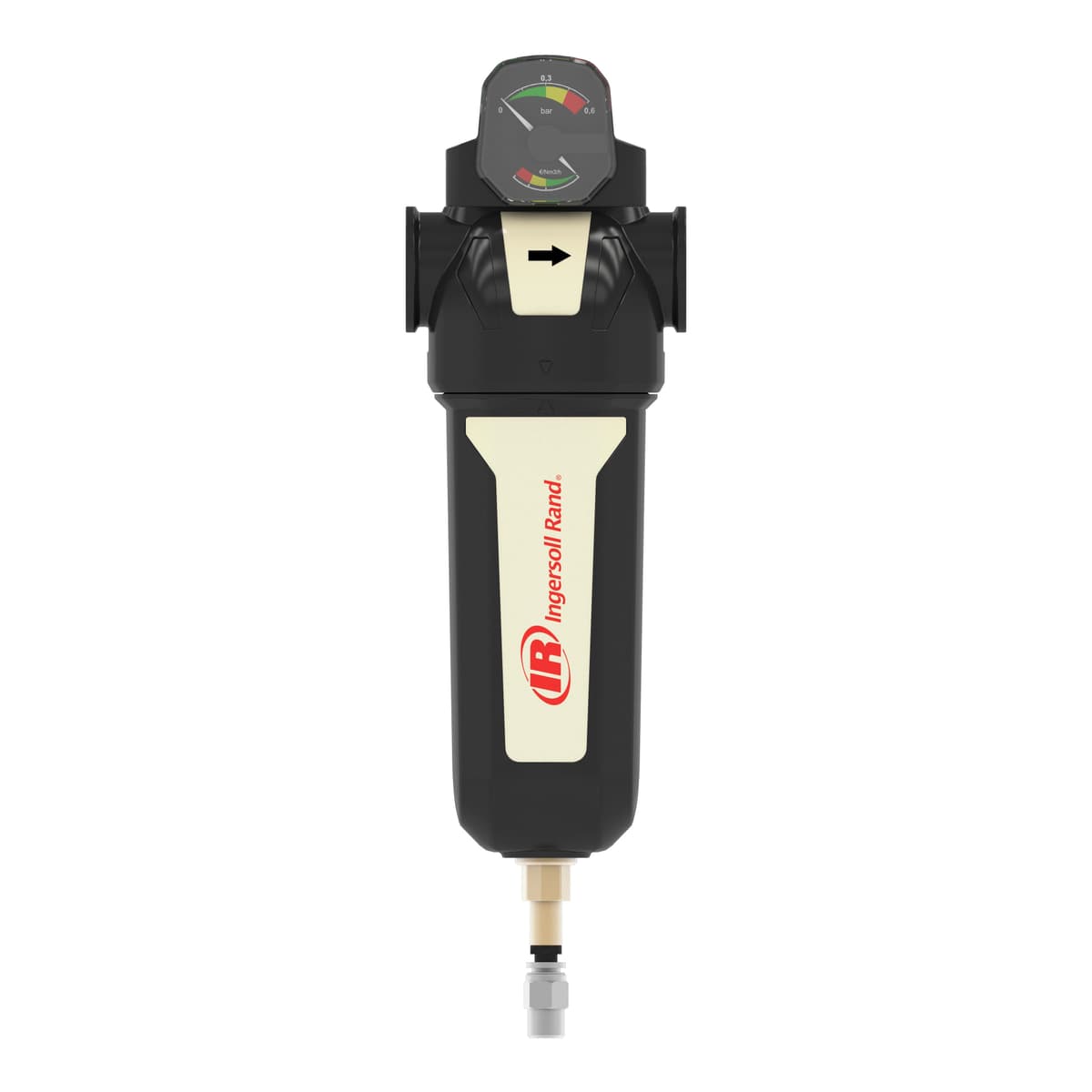

High Efficiency In-Line Filter: FA40IH thumbnail 2

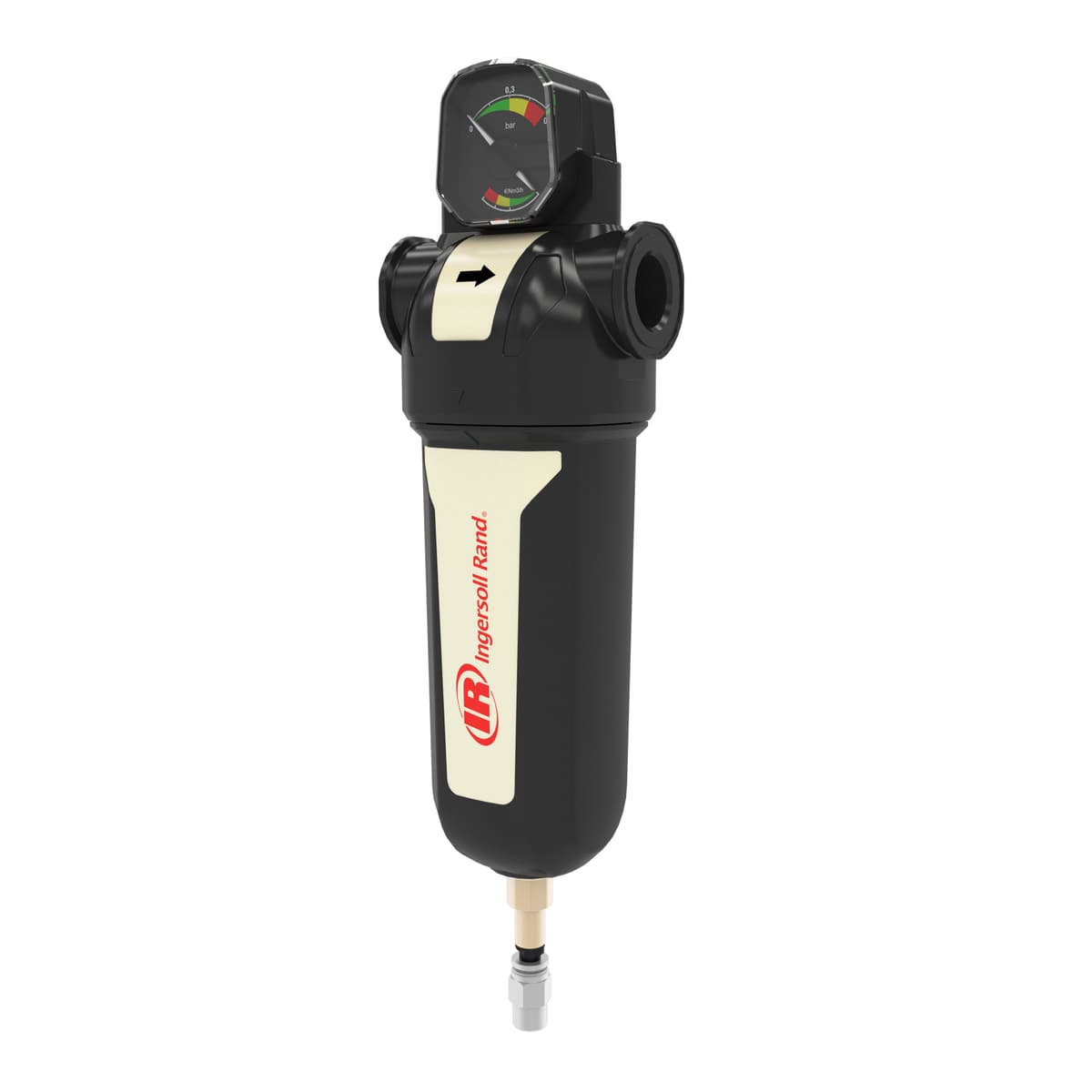

High Efficiency In-Line Filter: FA40IH thumbnail 3

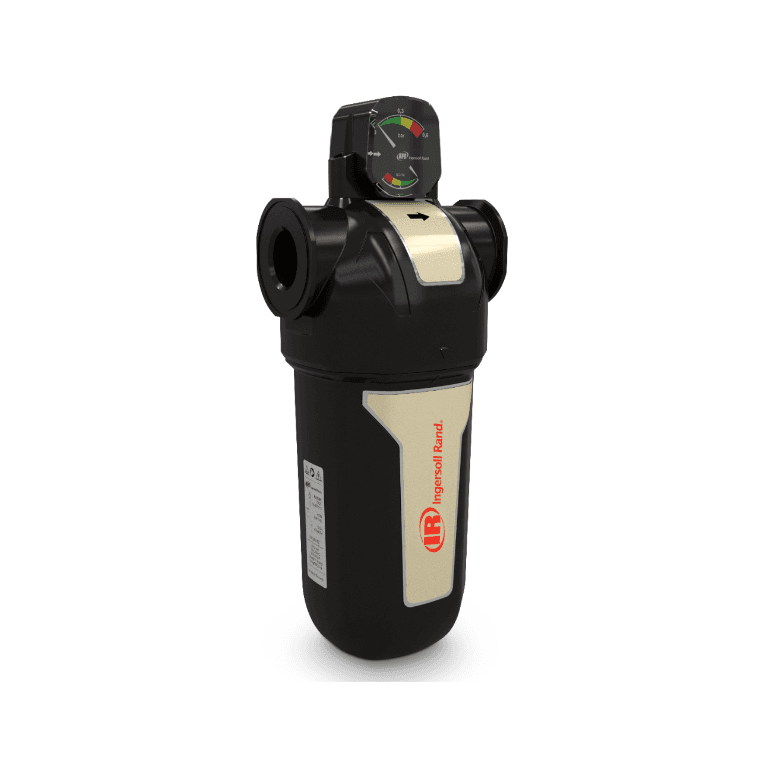

High Efficiency In-Line Filter: FA40IH thumbnail 4

22 SCFM High Efficiency Particulate and Coalescing Filter

SKU: 24233306

F-Series advanced compressed air filters reduce contamination in your air stream to help protect critical processes and valuable equipment. Rigorously tested and engineered with superior components, F-Series filters will provide years of reliable performance and consistently high quality air.
Product Specifications
Rated Flow (cfm): 22
Max Pressure (psi): 250
Maximum Inlet Temperature (F): 176
Filter Dimensions (inches) (LxWxH): 11.6x3x2.6
Filter Weight (lbs): 1.1
In Stock

$312.00

Prices for items exclude shipping costs and taxes. Depending on your delivery address, taxes may vary at checkout.
  • Grade H - High-Efficiency Oil Removal Filtration: Class 1 Particulate / Class 1 Oil
  • These filters can remove particles down to 0.01 micron and liquids down to 0.008 mg/m at 21°C / .008 ppm (W) at 70°F.
  • The H Series filters are especially suited for applications such as protecting instrumentation systems and gauging equipment. These filters should be preceded by a G series filter.
  • Ingersoll Rand's advanced F-Series compressed air filters reduce contamination in your air stream to help protect your critical processes and valuable equipment.
  • Without effective filtration, products and processes that depend on compressed air are subject to increased scrap, poor quality, and additional maintenance.
  • F-Series filter housing's flow path reduces turbulence and increases efficiency, while the deep-pleated element design further decreases pressure drop.
  • With features such as touch-free element replacement and visual alignment indicators, the F-Series filter is easy to maintain. Its zero-clearance design allows installation in tight spaces where other filters can't fit.
  • Accurate Information: Patented dual indicator shows differential pressure drop and operating efficiency
  • Reliable Operation: Filter element with stainless steel mesh withstands high pressure and minimizes flow restriction
