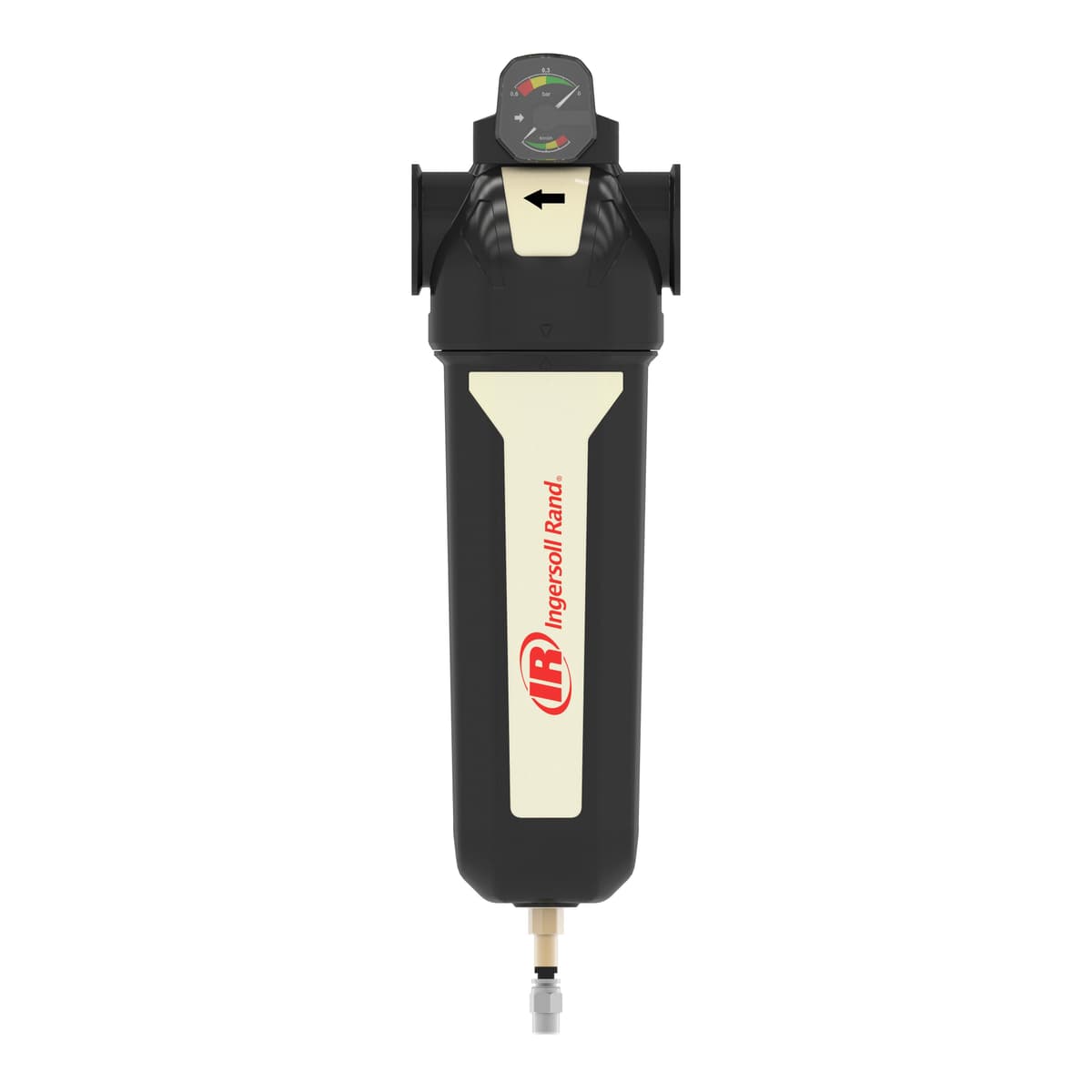

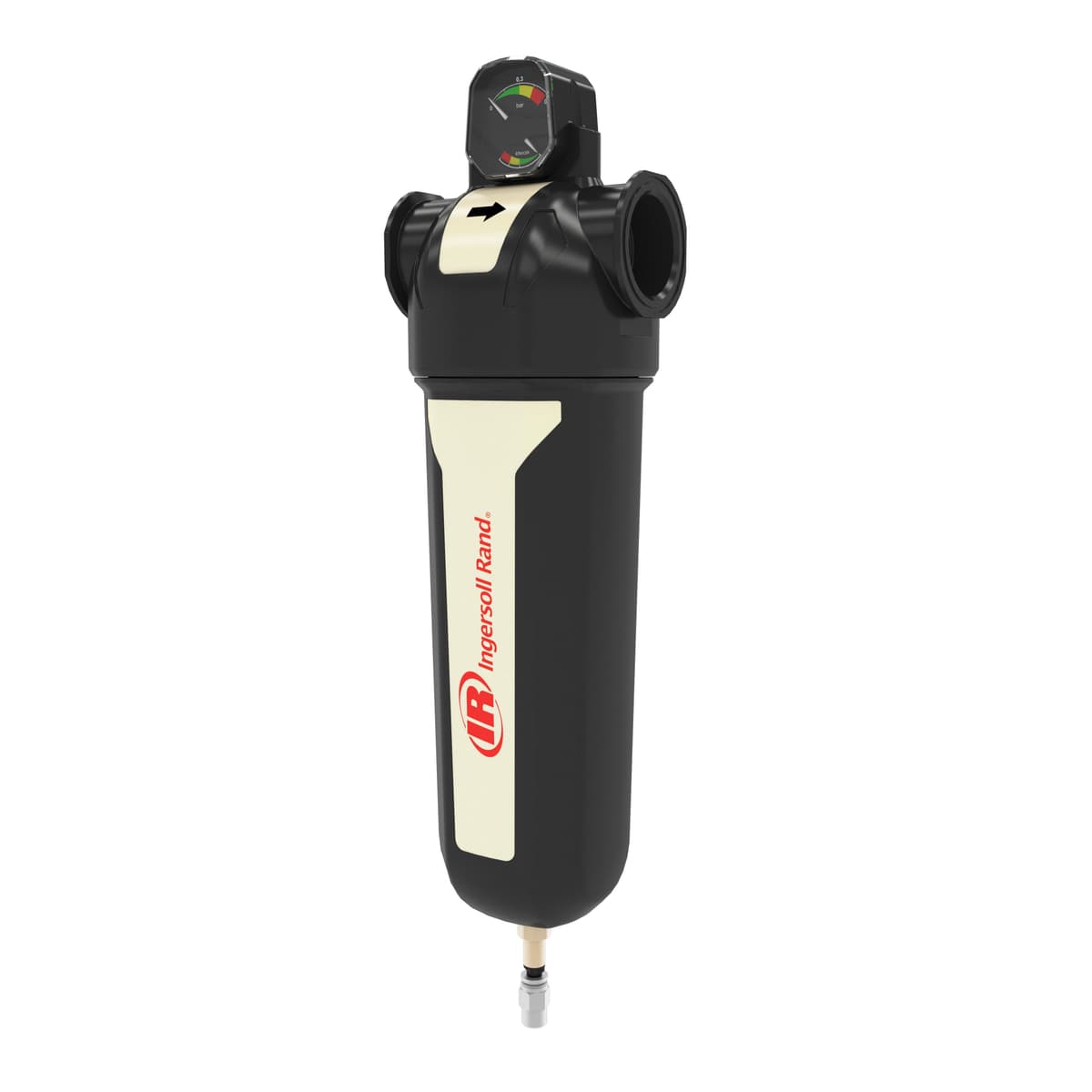

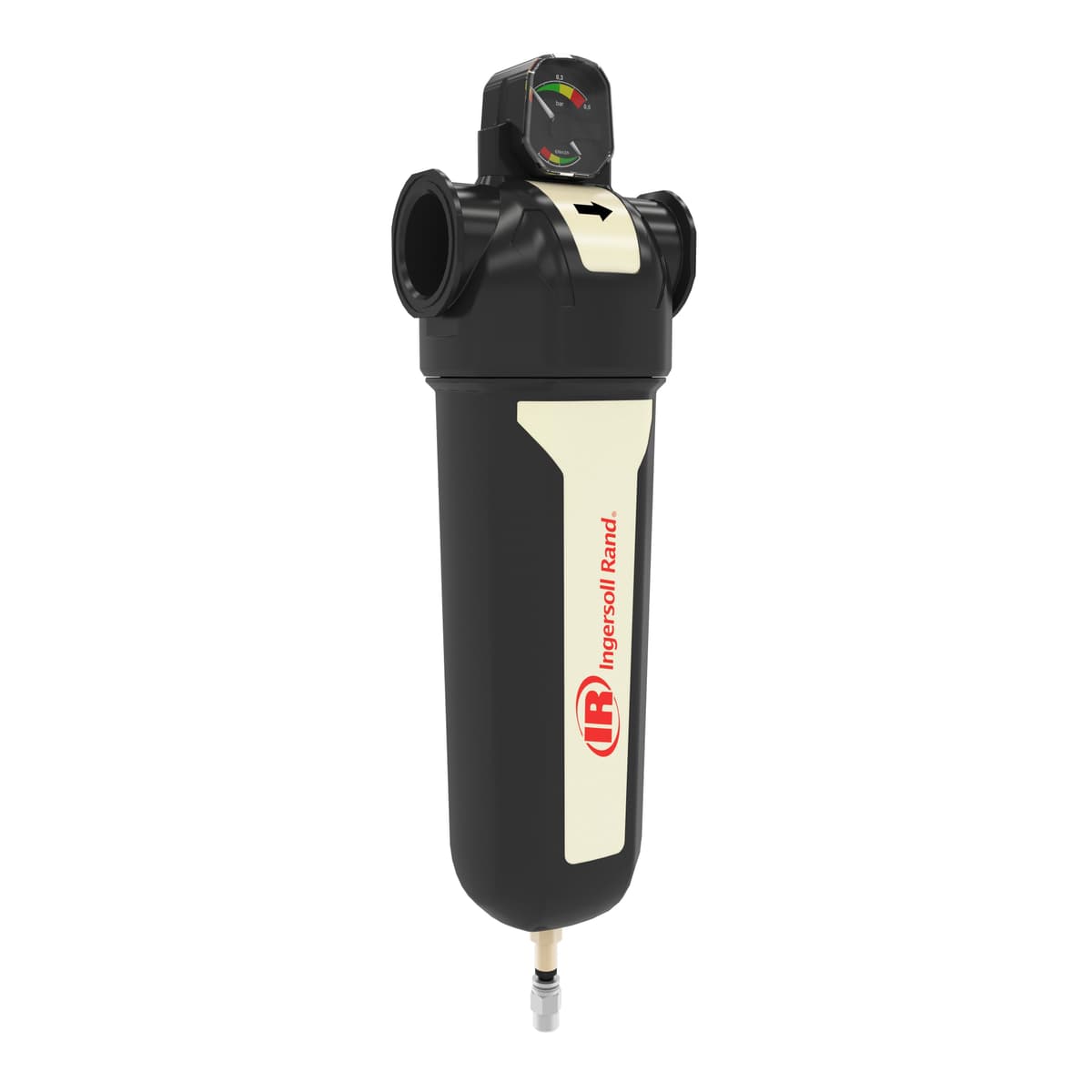

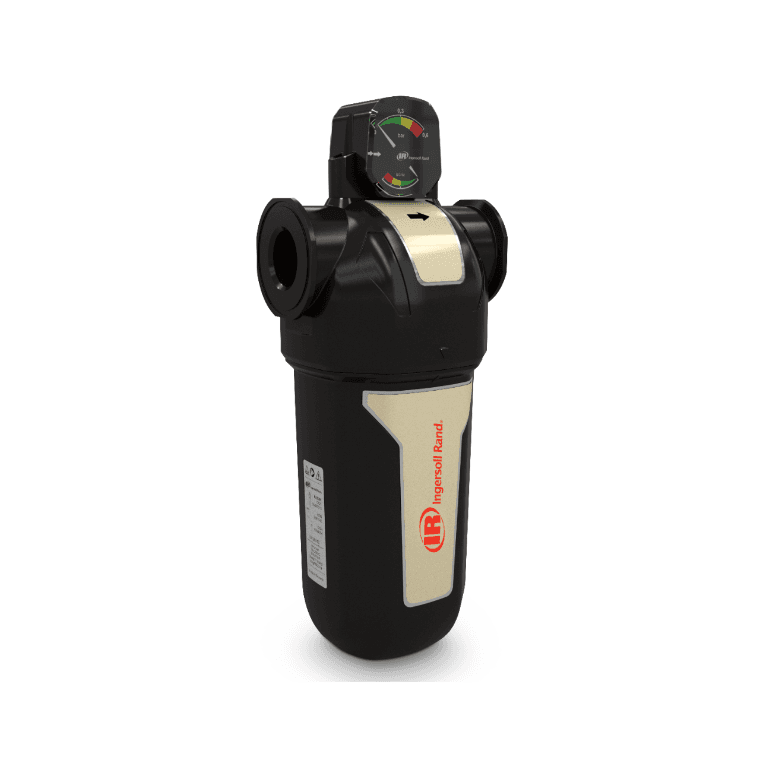

High Efficiency In-Line Filter: FA150IH

SKU: ir_24233546

High Efficiency In-Line Filter: FA150IH thumbnail 1

High Efficiency In-Line Filter: FA150IH thumbnail 2

High Efficiency In-Line Filter: FA150IH thumbnail 3

High Efficiency In-Line Filter: FA150IH thumbnail 4

88 SCFM High Efficiency Particulate and Coalescing Filter

SKU: ir_24233546

F-Series advanced compressed air filters reduce contamination in your air stream to help protect critical processes and valuable equipment. Rigorously tested and engineered with superior components, F-Series filters will provide years of reliable performance and consistently high quality air.

Product Specifications
Rated Flow (cfm): 88
Max Pressure (psi): 250
Maximum Inlet Temperature (F): 176
Filter Dimensions (inches) (LxWxH): 16.5x5.5x5.1
Filter Weight (lbs): 4.4

In Stock

$535.28

Prices for items exclude shipping costs and taxes. Depending on your delivery address, taxes may vary at checkout.

Grade H - High-Efficiency Oil Removal Filtration: Class 1 Particulate / Class 1 Oil
These filters can remove particles down to 0.01 micron and liquids down to 0.008 mg/m at 21°C / .008 ppm (W) at 70°F.
The H Series filters are especially suited for applications such as protecting instrumentation systems and gauging equipment. These filters should be preceded by a G series filter.
Ingersoll Rand's advanced F-Series compressed air filters reduce contamination in your air stream to help protect your critical processes and valuable equipment.
Without effective filtration, products and processes that depend on compressed air are subject to increased scrap, poor quality, and additional maintenance.
F-Series filter housing's flow path reduces turbulence and increases efficiency, while the deep-pleated element design further decreases pressure drop.
With features such as touch-free element replacement and visual alignment indicators, the F-Series filter is easy to maintain. Its zero-clearance design allows installation in tight spaces where other filters can't fit.
Accurate Information: Patented dual indicator shows differential pressure drop and operating efficiency
Reliable Operation: Filter element with stainless steel mesh withstands high pressure and minimizes flow restriction
