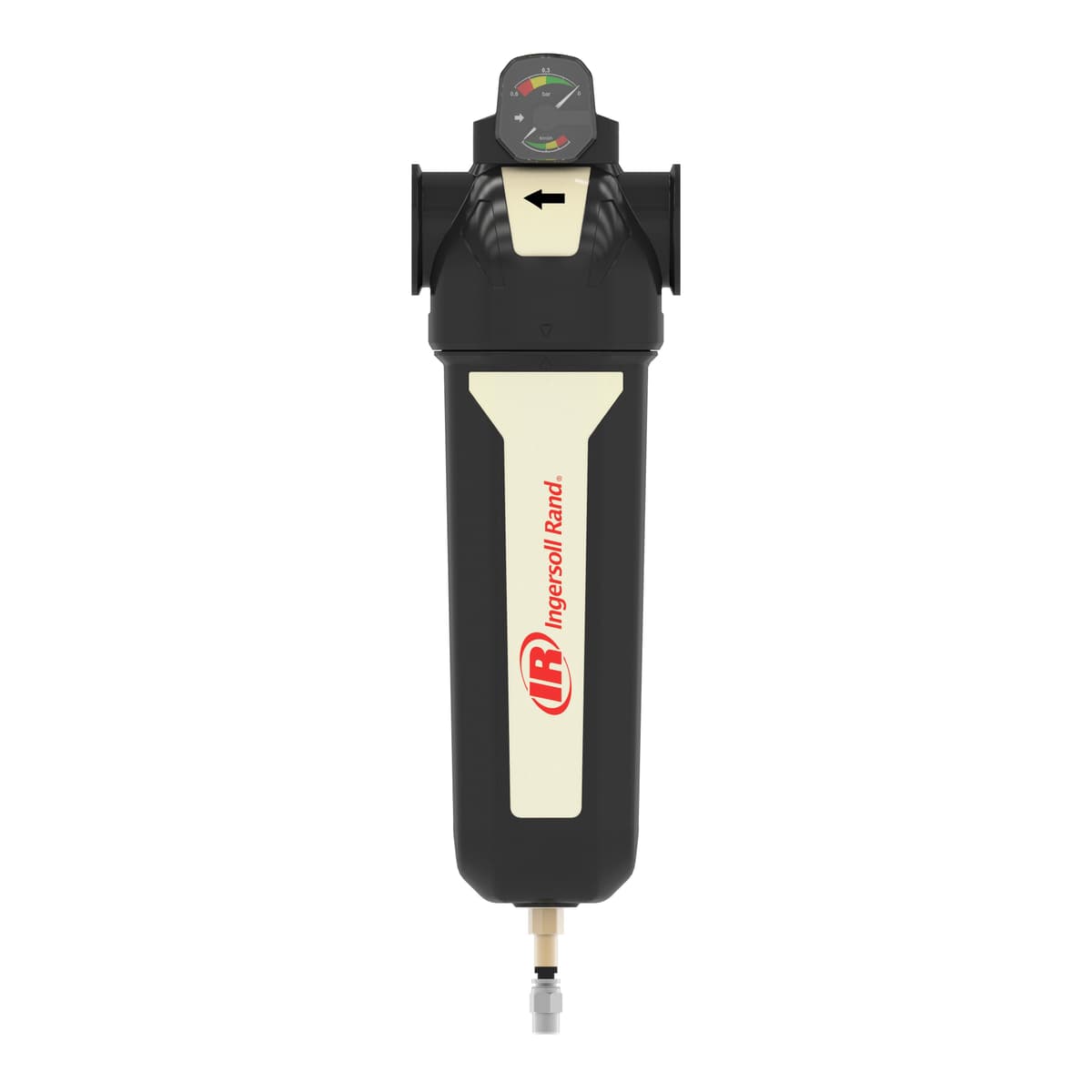

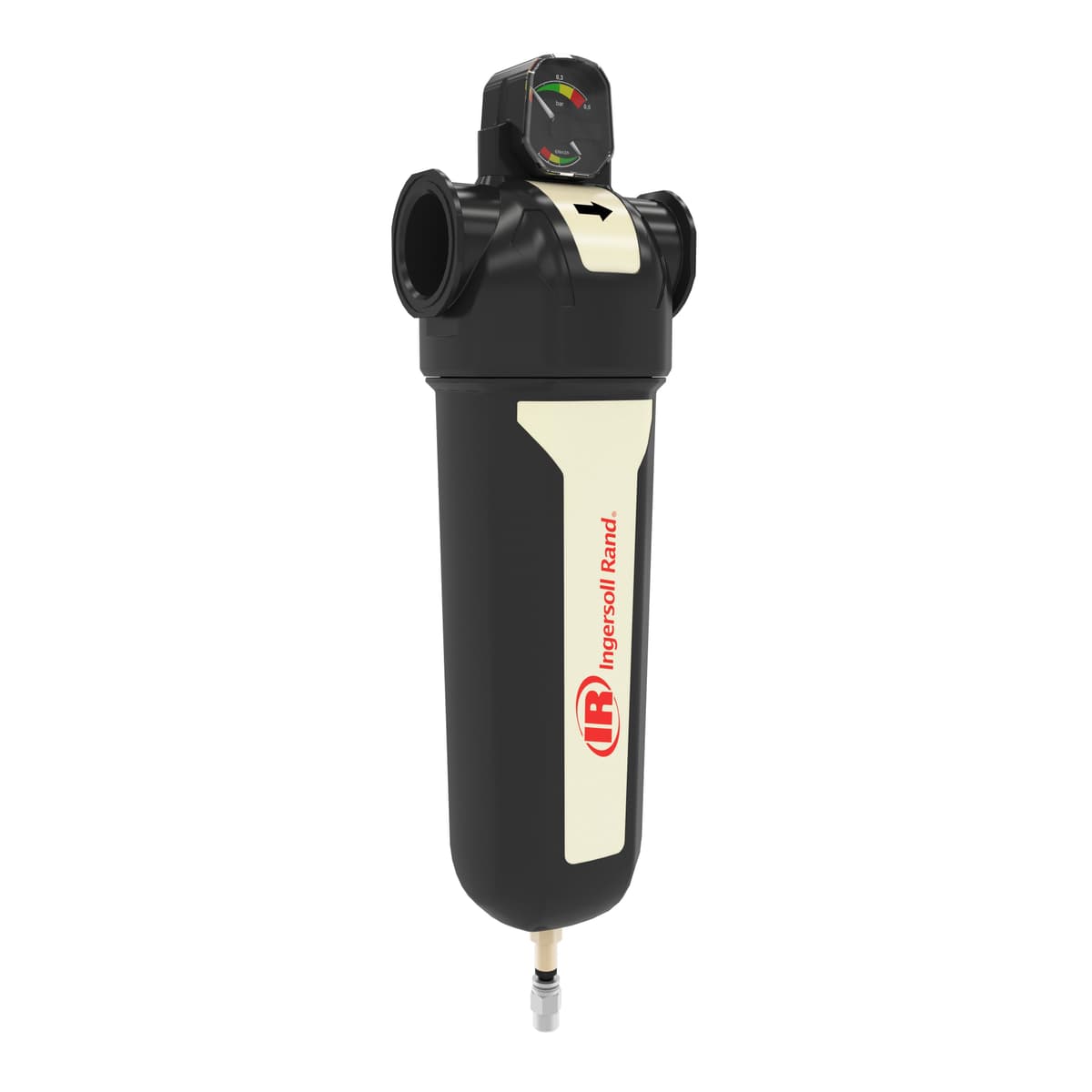

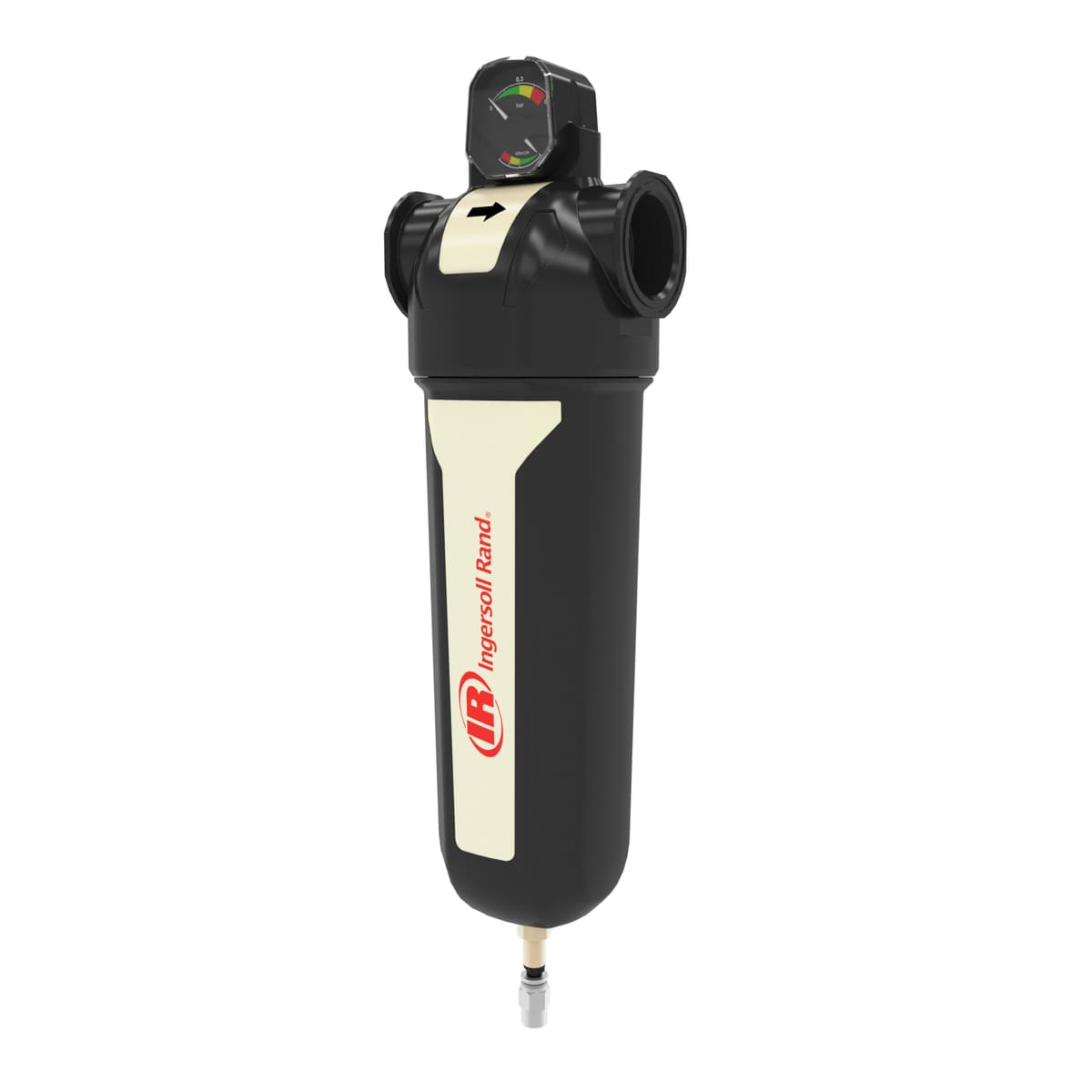

General Purpose In-Line Filter: FA400IG

SKU: 24233769

F-Series high efficiency particulate and coalescing filter for Ingersoll Rand air compressors, rigorously tested for reliable performance and clean air
General Purpose In-Line Filter: FA400IG thumbnail 1
General Purpose In-Line Filter: FA400IG thumbnail 2
General Purpose In-Line Filter: FA400IG thumbnail 3

235 SCFM General Purpose Particulate and Coalescing Filter

SKU: 24233769

F-Series advanced compressed air filters reduce contamination in your air stream to help protect critical processes and valuable equipment. Rigorously tested and engineered with superior components, F-Series filters will provide years of reliable performance and consistently high quality air.
Product Specifications
Rated Flow (cfm): 235
Max Pressure (psi): 250
Maximum Inlet Temperature (F): 176
Filter Dimensions (inches) (LxWxH): 20.1x5.5x5.1
Filter Weight (lbs): 5.28
In Stock

$1,012.00

Prices for items exclude shipping costs and taxes. Depending on your delivery address, taxes may vary at checkout.
  • Grade G General Purpose Filtration: Class 2 Particulate / Class 2 Oil
  • These filters remove oil, water, dust, metal particles, and pipe scale. Solids can be removed down to 0.1 micron and liquids down to 0.03 mg/m at 21 C / 0.03 ppm (W) at 70° F.
  • Ingersoll Rand's advanced F-Series compressed air filters reduce contamination in your air stream to help protect your critical processes and valuable equipment.
  • Without effective filtration, products and processes that depend on compressed air are subject to increased scrap, poor quality, and additional maintenance.
  • F-Series filter housing's flow path reduces turbulence and increases efficiency, while the deep-pleated element design further decreases pressure drop.
  • With features such as touch-free element replacement and visual alignment indicators, the F-Series filter is easy to maintain. Its zero-clearance design allows installation in tight spaces where other filters can't fit.
  • Accurate Information: Patented dual indicator shows differential pressure drop and operating efficiency
  • Reliable Operation: Filter element with stainless steel mesh withstands high pressure and minimizes flow restriction
  • Easy Maintenance: Ergonomic bowl design with no-touch filter simplifies element replacement
