General Purpose In-Line Filter: FA190IG

SKU: 24233603

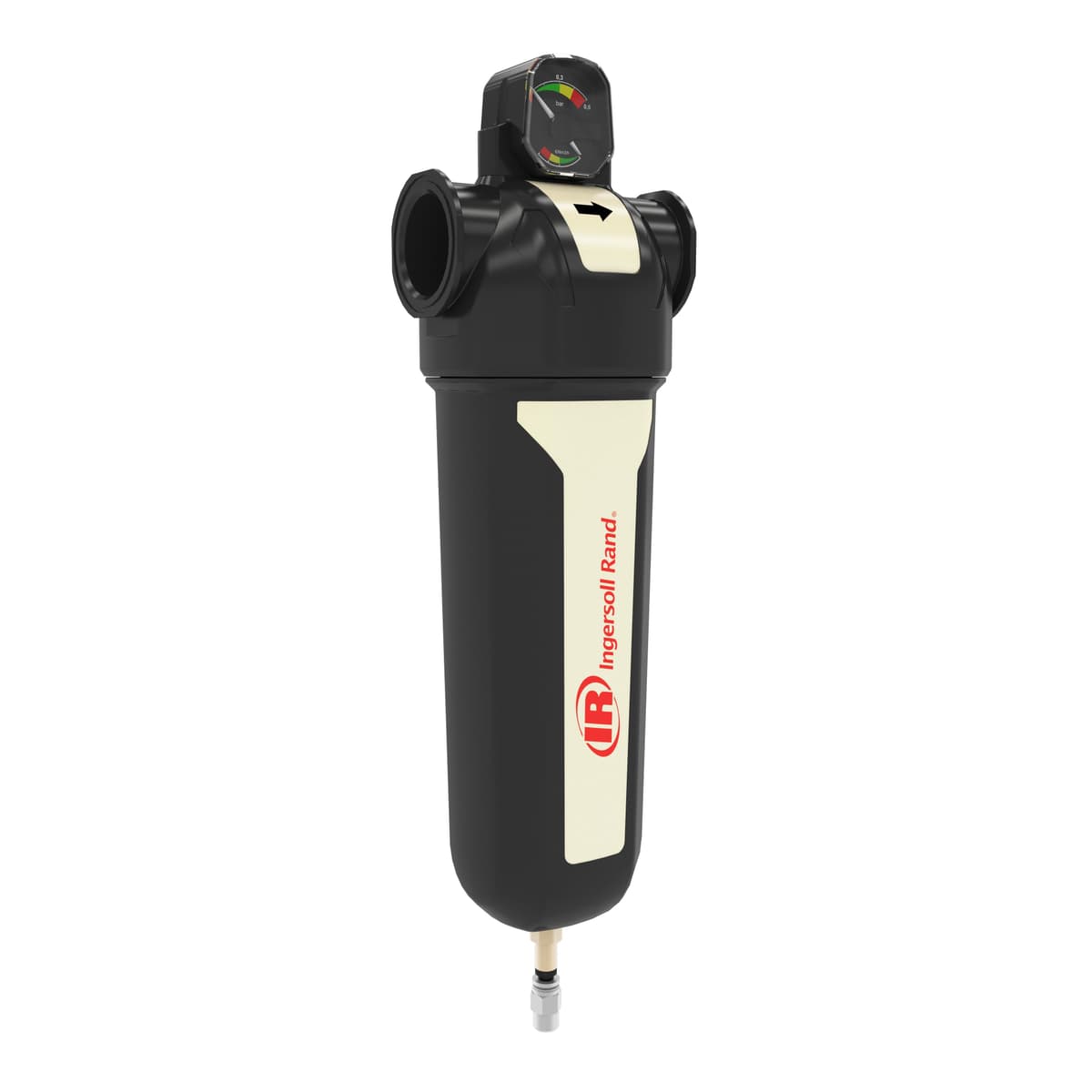

F-Series high efficiency particulate and coalescing filter for Ingersoll Rand air compressors, rigorously tested for reliable performance and clean air

General Purpose In-Line Filter: FA190IG thumbnail 1

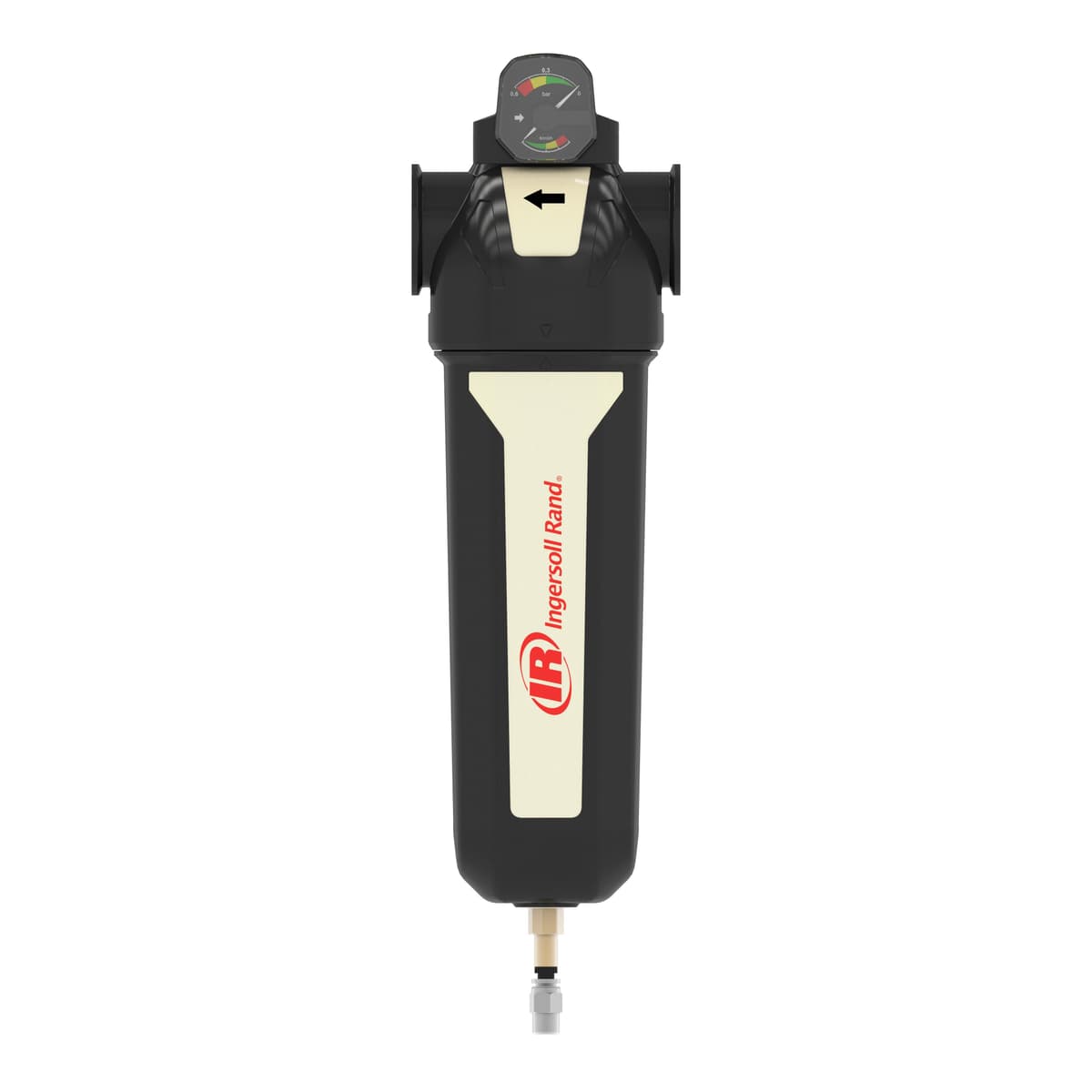

General Purpose In-Line Filter: FA190IG thumbnail 2

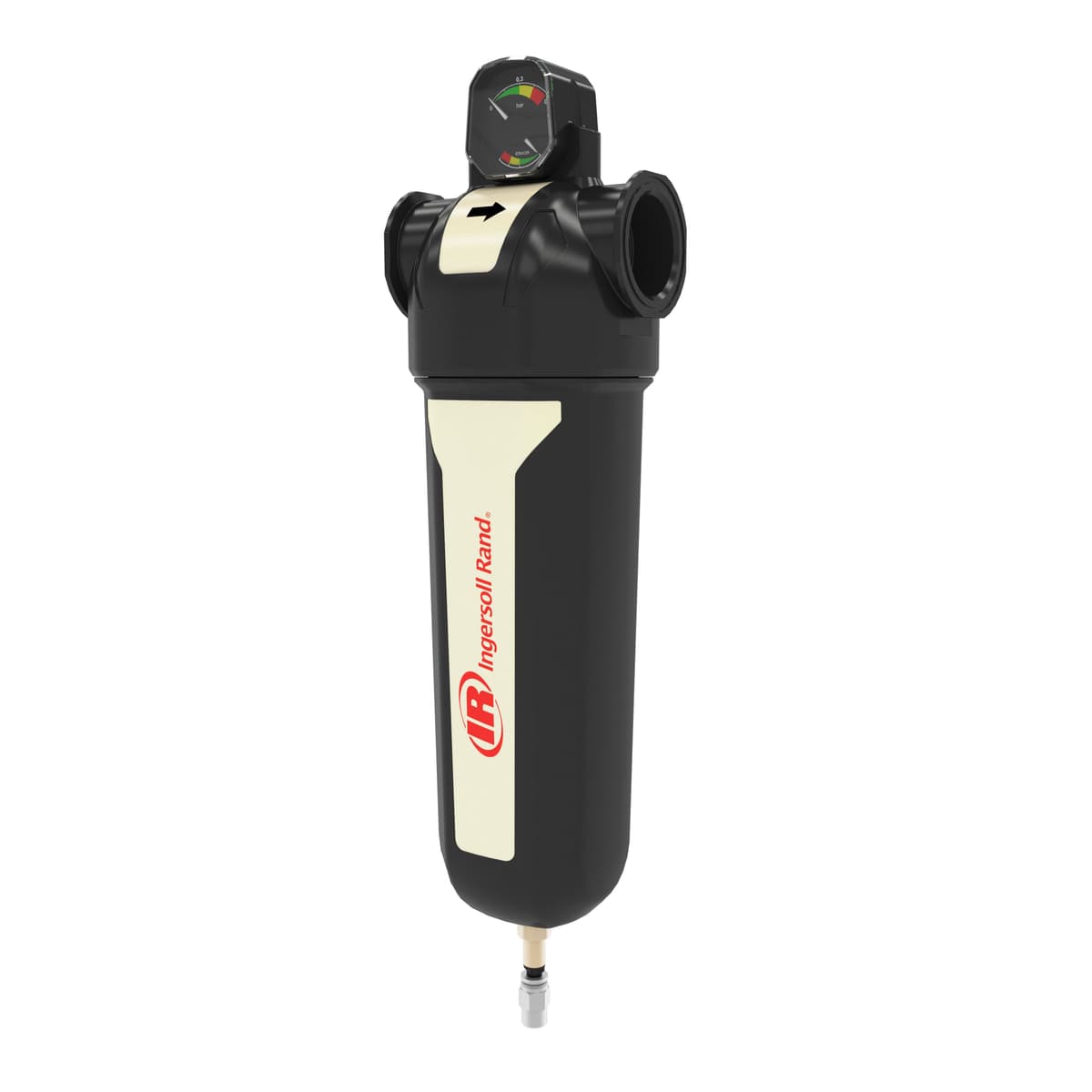

General Purpose In-Line Filter: FA190IG thumbnail 3

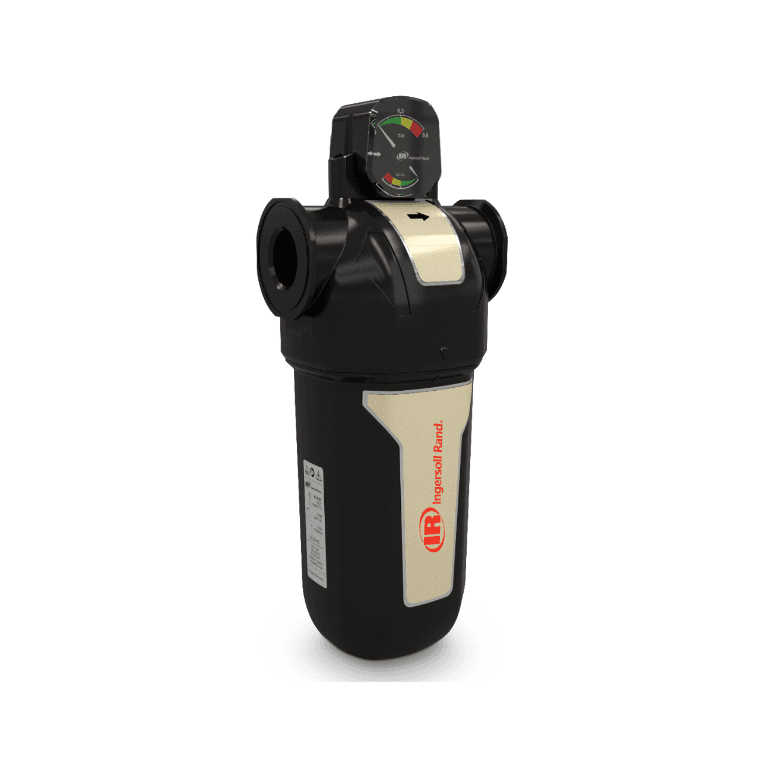

General Purpose In-Line Filter: FA190IG thumbnail 4

110 SCFM General Purpose Particulate and Coalescing Filter

SKU: 24233603

F-Series advanced compressed air filters reduce contamination in your air stream to help protect critical processes and valuable equipment. Rigorously tested and engineered with superior components, F-Series filters will provide years of reliable performance and consistently high quality air.

Product Specifications
Rated Flow (cfm): 110
Max Pressure (psi): 250
Maximum Inlet Temperature (F): 176
Filter Dimensions (inches) (LxWxH): 4.5x5.1x15
Filter Weight (lbs): 1.2

In Stock

$618.00

Prices for items exclude shipping costs and taxes. Depending on your delivery address, taxes may vary at checkout.

Grade G General Purpose Filtration: Class 2 Particulate / Class 2 Oil
These filters remove oil, water, dust, metal particles, and pipe scale. Solids can be removed down to 0.1 micron and liquids down to 0.03 mg/m at 21 C / 0.03 ppm (W) at 70° F.
Ingersoll Rand's advanced F-Series compressed air filters reduce contamination in your air stream to help protect your critical processes and valuable equipment.
Without effective filtration, products and processes that depend on compressed air are subject to increased scrap, poor quality, and additional maintenance.
F-Series filter housing's flow path reduces turbulence and increases efficiency, while the deep-pleated element design further decreases pressure drop.
With features such as touch-free element replacement and visual alignment indicators, the F-Series filter is easy to maintain. Its zero-clearance design allows installation in tight spaces where other filters can't fit.
