Duplex Reciprocating Compressor: 2-2545E10-P, 460-3-60
SKU: 46818688

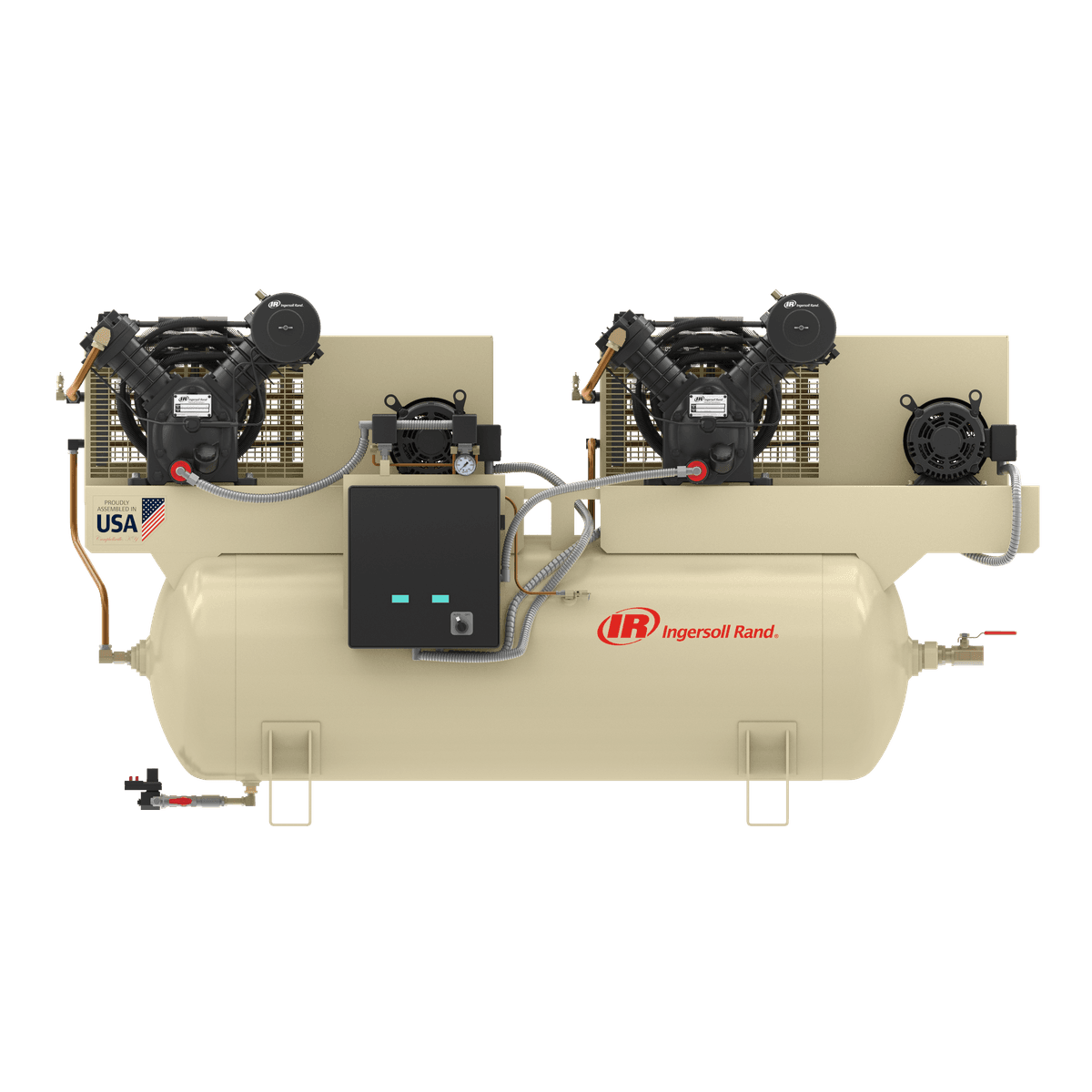

Duplex 10 HP Reciprocating Air Compressor
SKU: 46818688
Our duplex reciprocating air compressors offer two individual compressor pumps and two motors mounted on a single tank, providing 100% built-in backup or additional air power. The latest generation includes the legendary Type 30 pump with added features.
Product Specifications
Power (HP): 10
Rated Flow (cfm): 71.2
Max Pressure (psi): 175
Tank Size: 120 gal
Tank Style: Horizontal
Voltage: 460
Phase: 3
Compressor Dimensions (inches) (LxWxH): 83x36x65
Compressor Weight (lbs): 1101.685
Power (HP): 10
Rated Flow (cfm): 71.2
Max Pressure (psi): 175
Tank Size: 120 gal
Tank Style: Horizontal
Voltage: 460
Phase: 3
Compressor Dimensions (inches) (LxWxH): 83x36x65
Compressor Weight (lbs): 1101.685
Expected to ship within 7-10 business days.
In Stock
$14,607.00
Prices for items exclude shipping costs and taxes. Depending on your delivery address, taxes may vary at checkout.- Long-Life: Durable cast iron construction, long-lasting extended pump life designed for over 15,000 hours of trouble-free use.
- Flexible, Compact Design: 100% continuous duty with automatic duplexing or alternating of compressors, ideal for applications where space is at a premium.
- Easy to Service: Individually cast cylinders, overhung crankshaft and one piece connecting rod simplifies maintenance and service.
- Reliable Operation: All Season Select synthetic lubricant increases efficiency; with 2,000 hours of service between changeouts, it performs four times longer than petroleum-based lubricants. Two-Year Warranty available.
- Available Feature Package (5, 7.5, 10 hp) Value Feature Package includes 100% cast iron pump, ASME-coded receiver tank, ODP motor, automatic start/stop control with pressure switch and manual drain. Value Plus and Premium package available.
