Duplex Reciprocating Compressor: 2-2475E7.5-P, 460-3-60

SKU: ir_46818662

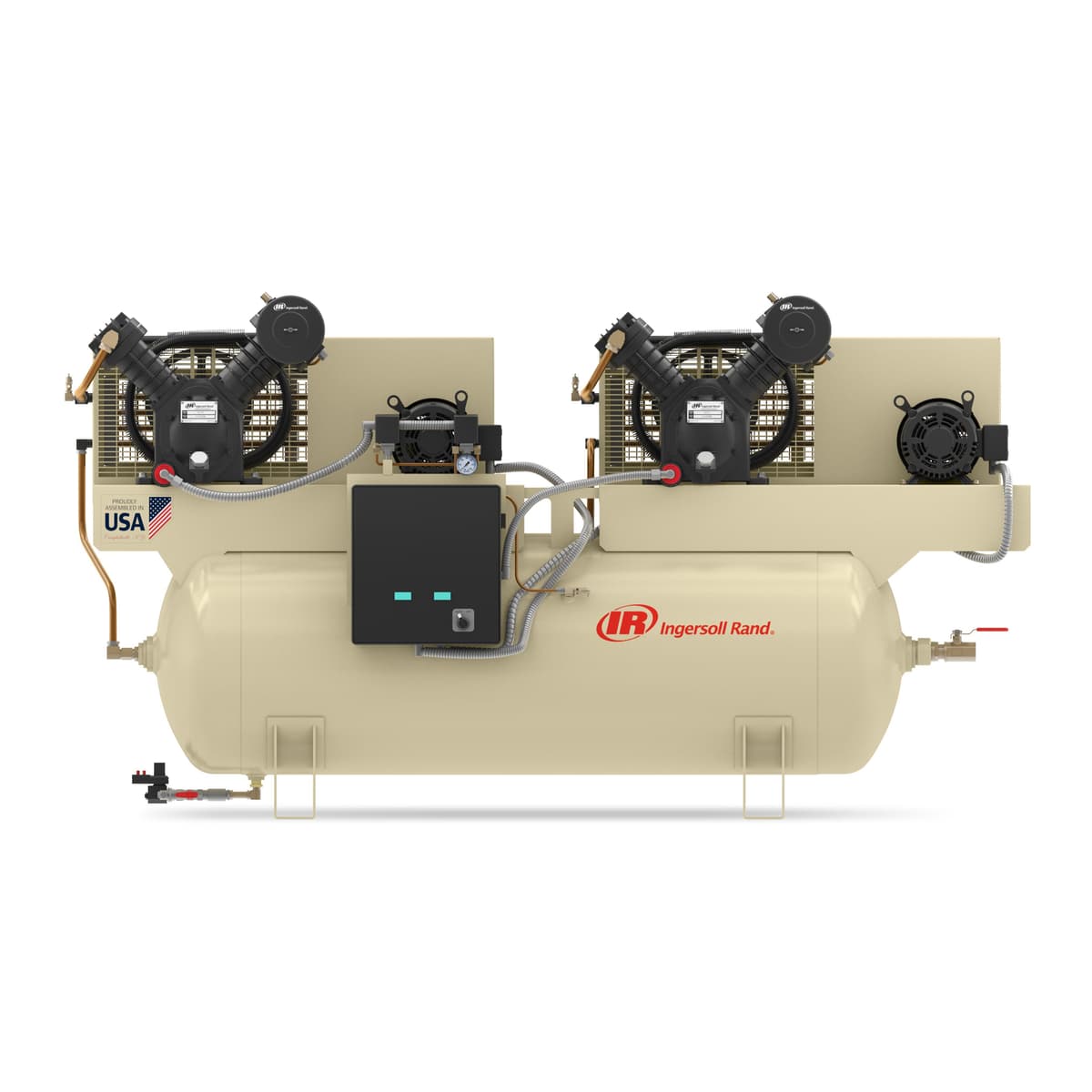

Duplex 7.5 HP Reciprocating Air Compressor

SKU: ir_46818662

Our duplex reciprocating air compressors offer two individual compressor pumps and two motors mounted on a single tank, providing 100% built-in backup or additional air power. The latest generation includes the legendary Type 30 pump with added features.

Product Specifications
Power (HP): 7.5
Rated Flow (cfm): 48.6
Max Pressure (psi): 175
Tank Size: 80 gal
Tank Style: Horizontal
Voltage: 460
Phase: 3
Compressor Dimensions (inches) (LxWxH): 70x44x43
Compressor Weight (lbs): 696.96

Expected to ship within 7-10 business days.

In Stock

$11,564.25

Prices for items exclude shipping costs and taxes. Depending on your delivery address, taxes may vary at checkout.

Long-Life: Durable cast iron construction, long-lasting extended pump life designed for over 15,000 hours of trouble-free use.
Easy to Service: Individually cast cylinders, overhung crankshaft and one piece connecting rod simplifies maintenance and service.
Reliable Operation: All Season Select synthetic lubricant increases efficiency; with 2,000 hours of service between change outs, it performs four times longer than petroleum-based lubricants. Two-Year Warranty available.
Available Feature Package (5, 7.5, 10 hp) Value Feature Package includes 100% cast iron pump, ASME-coded receiver tank, ODP motor, automatic start/stop control with pressure switch and manual drain. Value Plus and Premium package available.
